Normalizing biomechanical data
📝 Weekly paper summary
Comparison of 5 Normalization Methods for Knee Joint Moments in the Single-Leg Squat (Hirsch et al., 2022)
(yes, one of my papers this week, which is related to one of my previous blog posts on the topic of normalizing biomechanical data 😊)
Category
Exploratory analysis
Context
It's common in many analyses to divide an outcome variable (such as a net joint moment [NJM]) by an explanatory variable (people's body mass) to "level the playing field." However, anytime a ratio like this is computed, there are several latent statistical assumptions that researchers (and practitioners) must also consider. I highlighted these assumptions in more detail in my previous blog post, but the three we explored in this paper are as follows:

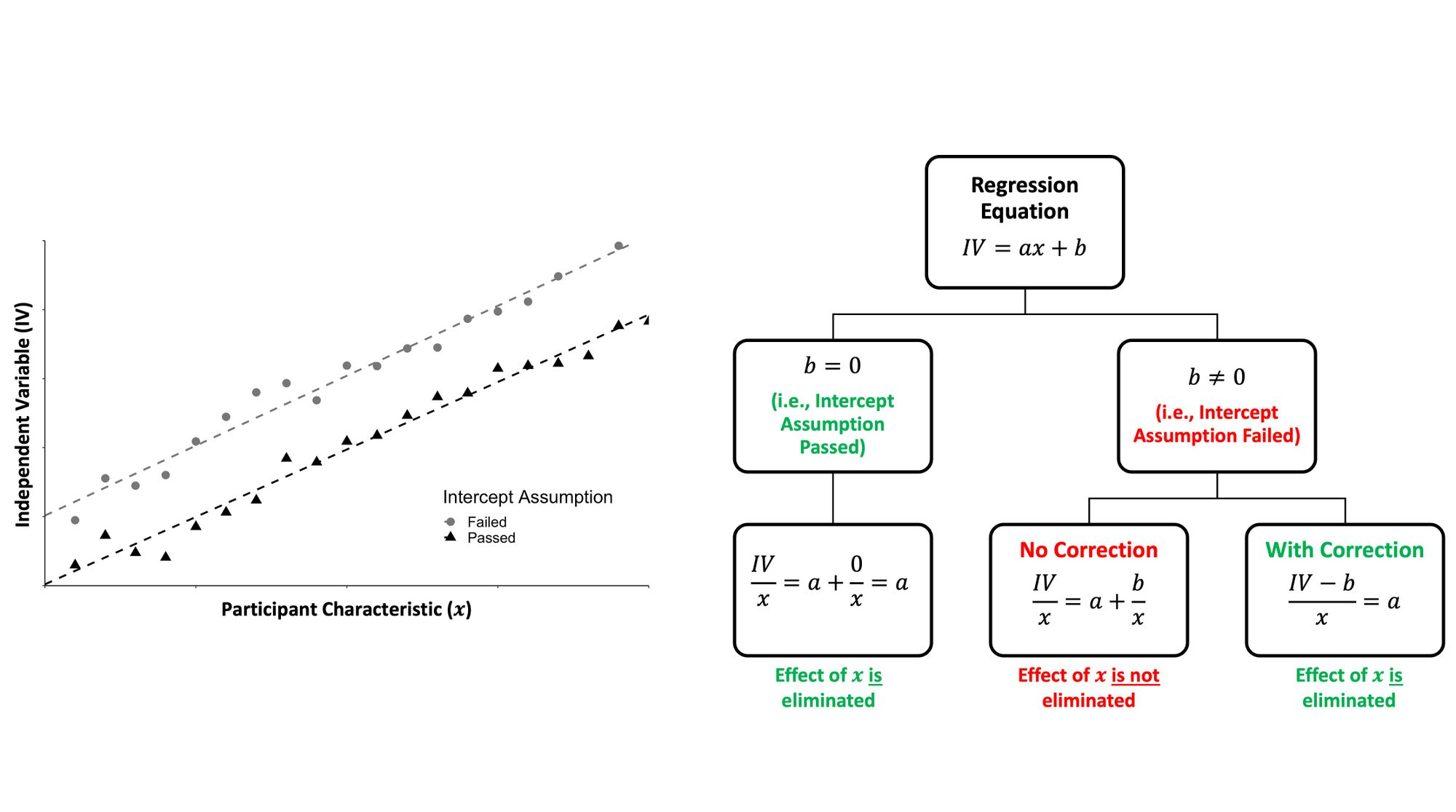

1) The Intercept Assumption

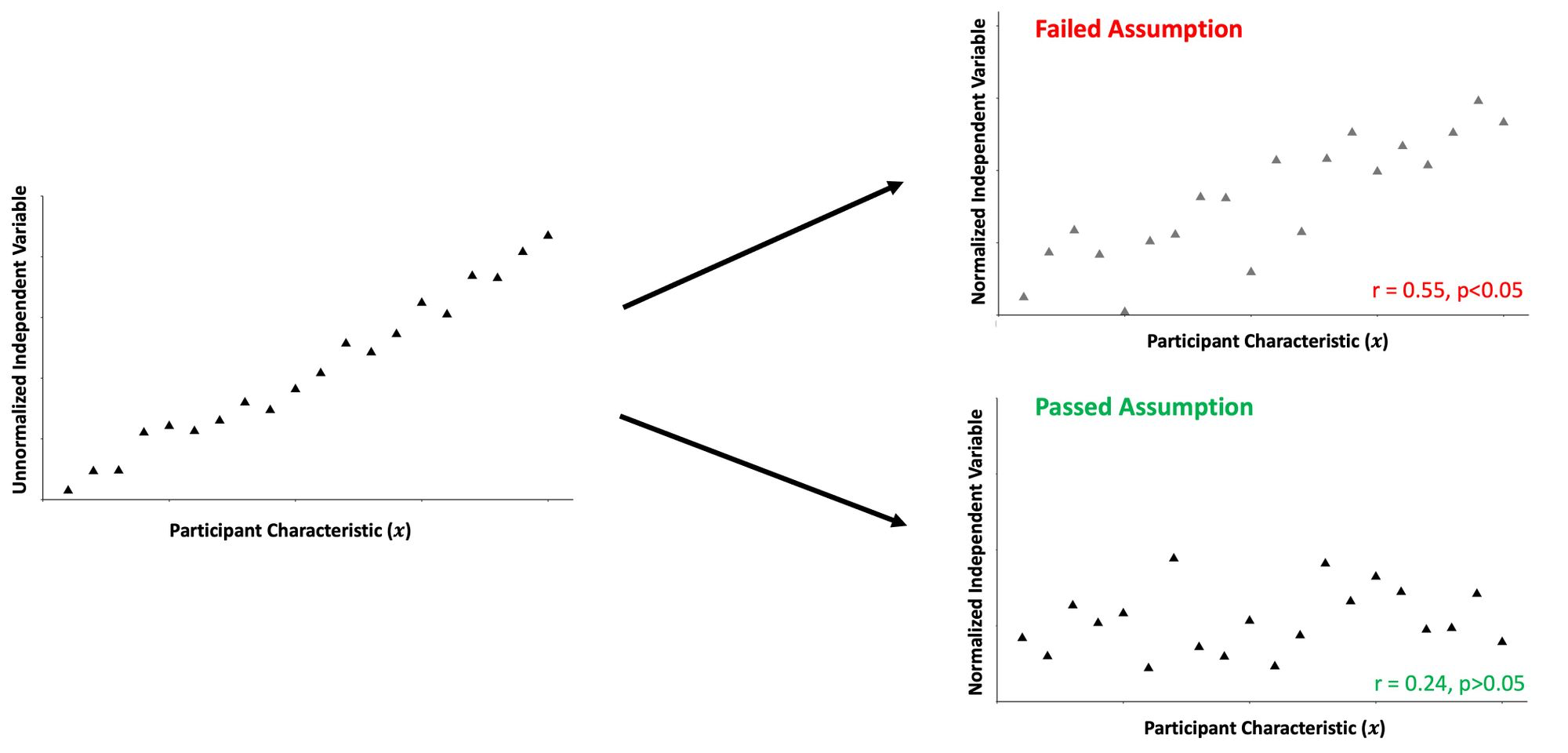

2) The Correlation Assumption
3) Statistical Difference Assumption
The statistical difference assumption implies that the interpretations of whether statistically significant differences exist between groups are the same when computing ratios as when one computes a linear model adjusting for participants' body shapes and sizes. For example, suppose the inferences from a linear model comparing the NJM between two groups that adjusts for participants' body mass gives a different answer than comparing the NJM/kg between these two groups using a t-test. Assuming that the linear regression assumptions were satisfied, we have an inconsistency that needs resolving (and we're better off going with the linear regression).
The study's purpose was to assess these three assumptions when normalizing knee NJM data during a single leg squat. We hypothesized that normalizing this data using the product of mass*height or mass*leg length would satisfy all three assumptions since the units would be more dimensionally similar to NJM data.
Correctness
I'm pretty biased with this study and think we did lots of things well, so let me highlight some of the more relevant delimitations that you should consider when interpreting these data (you can find a complete list in the paper):
- these findings are somewhat specific to the modelling decisions made in this investigation since different filter cutoff frequencies, the use of functional joint centers, etc. could impact joint kinetics
- We tested people in a narrow band of movement velocities during a single-leg squat. Therefore, the appropriateness of the normalization techniques could conceivably change depending on the movement velocities and magnitude of joint excursions when performing a task (e.g., the results may be different when interpreting running data)
- Other joints, with more or less ranges of motion and joint dynamics, may also yield different results.
Contributions
- Normalizing NJM about the mediolateral axis (i.e., flexion/extension moments): mass*height and mass*leg length satisfied all three assumptions, but mass, height, and leg length alone did not
- Normalizing NJM about the anteroposterior axis (i.e., ab/adduction moments): height and leg length satisfied all three assumptions, but mass, mass*height, and mass*leg length did not
